TRUMP 250(WTYF 250) series

home> 제품소개 > Gearless Traction Machine > TRUMP 250(WTYF 250) series

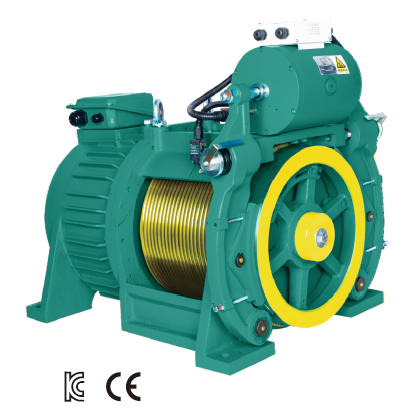

TRUMP250(WTYF250) series
TRUMP 250(WTYF 250) series
1. Roping : 1:1 (2:1)
2. Load Capacity : 800, 1000, 1150, 1275Kg (1350, 1600, 2000, 2500Kg)
3. Speed : 1.0, 1.5, 1.75, 2.0m/s (1.0, 1.5, 1.75, 2.0m/s)
4. Max hoisting height : 80mm (80mm)
5. Max axle load : 10000Kg (10000Kg)
6. Converter : 3Phase, Level 400V (3Phase, Level 400V)
7. Brake Voltage : Open DC 200V / Hold DC 100V (Open DC 110V / Hold DC 110V)
8. Sheave Dia : 406mm, Rope : 10mm (406mm, Rope : 10mm)
9. Poles : 24 (24)
10. Weight : 620, 640, 7000, 780Kg (620, 640, 7000, 780Kg)

제품도면

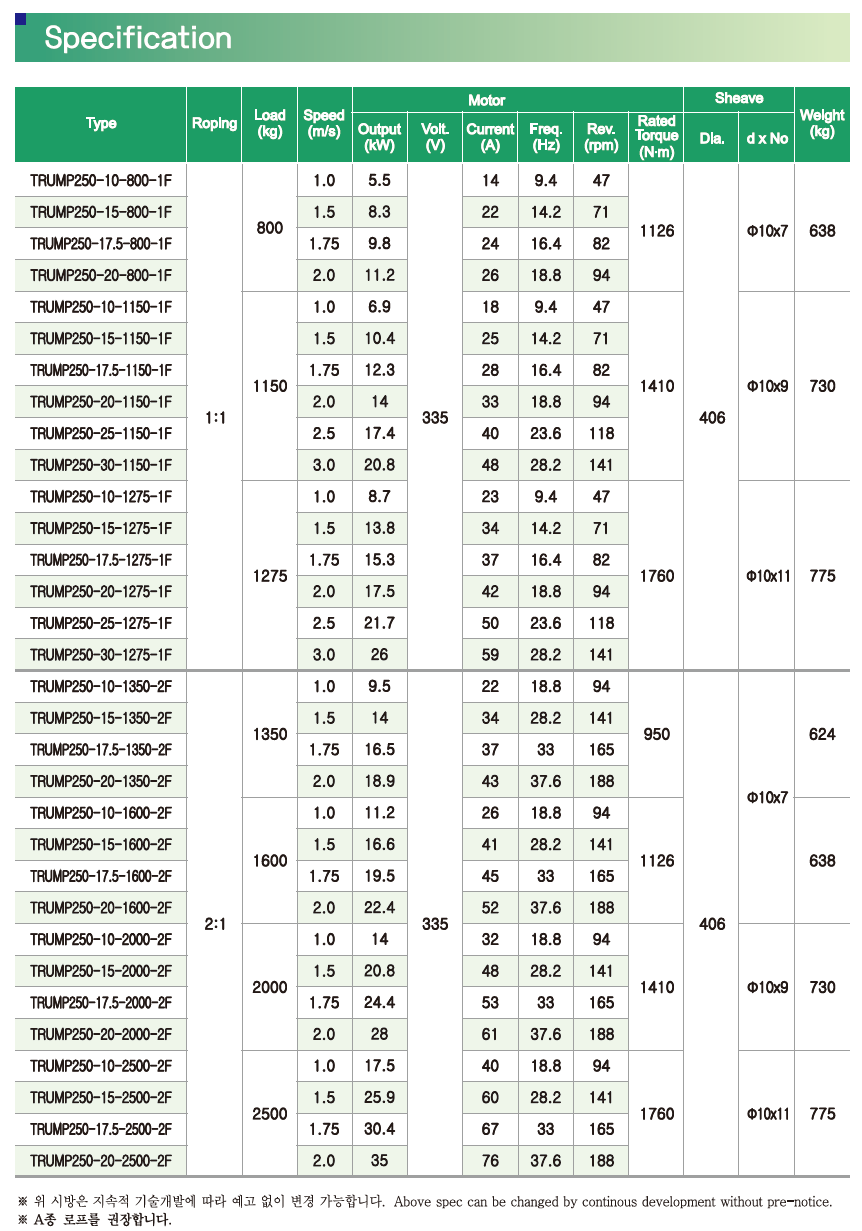

제품사양
